Raspberry Pi Pico + SD Card: Easy External Storage Hack

Unlock gigabytes of storage for your Pico projects — log sensor data, save configs or text files — using a simple SD-card module and SPI interface.

Turn Your Raspberry Pi Pico Into a Gigabyte-Ready Data Machine

If you’ve ever tried building an IoT or embedded project, you’ve probably hit the same wall everyone else does: Where do I store the data? Interfacing SD Card Module with Raspberry Pi Pico is powerful for its size — but onboard flash fills up fast. A few logs here, a configuration file there, and suddenly your project needs more memory than the Pico can comfortably hold.

The good news?
You can give your Pico gigabytes of expandable storage simply by attaching a microSD-card module. It’s cheap, safe, and surprisingly easy. And once you unlock it, your tiny Pico becomes a full-fledged data-logging beast.

Today’s guide walks you through the why, how, and what-you-can-build once your Pico joins the terabyte era (okay, gigabyte era — but still).

💡 Why Add SD-Card Storage to a Pico?

Most microcontrollers fall into two categories:

1. Great at running code

2. Terrible at storing data

Adding a microSD card changes that instantly. You get:

• Massive storage (GBs instead of KBs)

• Portable, removable memory

• Ability to store logs, settings, text files, sensor readings

• Compatibility with your laptop — just pop out the card

• A real filesystem (FAT32), not just raw bytes in memory

If your project deals with any long-term data — temperatures, RFID scans, timestamps, GPS positions, sensor arrays — this is a must-have upgrade.

🔧 What You Need

• Raspberry Pi Pico (regular or W)

• microSD Card Module

  • 3.3 V regulator

  • Level shifters (MUST if using 5V modules)

• microSD Card (FAT32 formatted)

• Jumper wires

• USB cable + a PC

This is a beginner-proof project — perfect if you want something useful but not too complex.

🧩 How the SD Module Talks to the Pico

The whole connection happens over SPI — a fast, streamlined protocol almost every microcontroller supports.

You’ll wire four main signals:

• MOSI – Pico sends data

• MISO – Pico receives data

• SCK – Clock signal

• CS – Chip select (tells the SD card when you’re talking to it)

And of course, 3.3 V + GND for power.

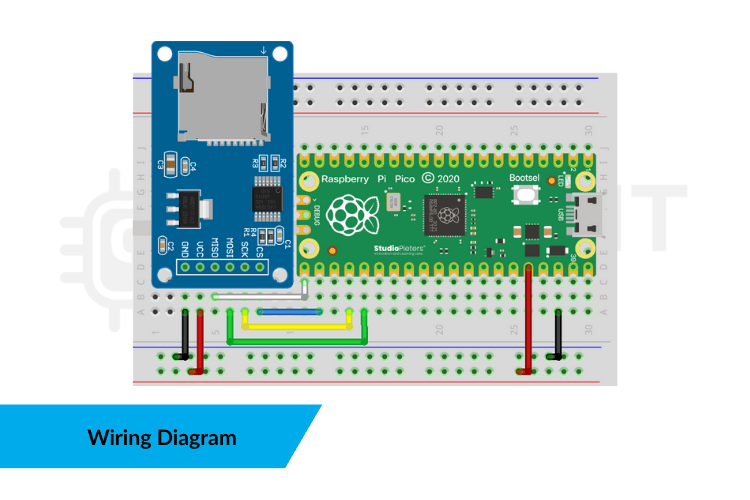

Here’s a reliable pin map you can use instantly:

SD ModulePico PinVCC3V3GNDGNDMOSIGP19MISOGP16SCKGP18CSGP17

Once connected, the SD library handles the rest — mounting the card, creating files, reading, writing, deleting, you name it.

🧪 Let’s Build a Simple “Serial File Manager”

To make this project genuinely useful (and fun), here’s what we’ll build:

👉 A Serial Monitor-driven mini filesystem tool
You’ll be able to press keys to:

• Create a file

• Write to it

• Read it

• Delete it

A great testbed before integrating this into your real project.

📦 Example Code (Arduino-Pico Core)

#include <SPI.h>
#include <SD.h>

const uint8_t CSPIN = 17;
const char *FILENAME = “demo.txt”;

void printMenu() {
  Serial.println(”\n---- SD Card File Manager ----”);
  Serial.println(”1. Create file”);
  Serial.println(”2. Write to file”);
  Serial.println(”3. Read file”);
  Serial.println(”4. Delete file”);
  Serial.print(”Select: “);
}

void setup() {
  Serial.begin(115200);
  while (!Serial) {}

  Serial.println(”Initializing SD card...”);
  if (!SD.begin(CSPIN)) {
    Serial.println(”SD init FAILED. Check wiring and card format.”);
    while (1) delay(500);
  }

  Serial.println(”SD init OK.”);
  printMenu();
}

void loop() {
  if (Serial.available()) {
    char c = Serial.read();

    switch (c) {
      case ‘1’: {
        File file = SD.open(FILENAME, FILE_WRITE);
        if (file) {
          Serial.println(”File created.”);
          file.close();
        } else {
          Serial.println(”Failed to create file.”);
        }
        break;
      }

      case ‘2’: {
        File file = SD.open(FILENAME, FILE_WRITE);
        if (file) {
          file.println(”Hello from Pico!”);
          Serial.println(”Wrote to file.”);
          file.close();
        } else {
          Serial.println(”Cannot write.”);
        }
        break;
      }

      case ‘3’: {
        File file = SD.open(FILENAME);
        if (file) {
          Serial.println(”Reading file:”);
          while (file.available()) Serial.write(file.read());
          file.close();
        } else {
          Serial.println(”Cannot read file.”);
        }
        break;
      }

      case ‘4’: {
        if (SD.remove(FILENAME)) Serial.println(”File deleted.”);
        else Serial.println(”Delete failed.”);
        break;
      }
    }

    printMenu();
  }
}

You now have a working Pico-powered file manager.

🪲 Common Pitfalls (And Easy Fixes)

❌ SD init fails

• Your SD card is probably formatted as exFAT

• Reformat using FAT32 + MBR partition

❌ Nothing happens in Serial Monitor

• Make sure you selected the right COM port

• Ensure 115200 baud is set on both IDE and serial window

❌ Module heats up

• You may have connected a 5V-only SD module

• Use a 3.3 V compatible one as the Pico is NOT 5V tolerant

🎯 Final Thoughts

Microcontrollers are amazing, but they’re often limited by memory. By adding a microSD card, you transform the Raspberry Pi Pico into a persistent-storage powerhouse capable of tackling real-world applications.

If you’re building anything that needs data — even something small — this is one of the highest-impact, lowest-effort upgrades you can make.
